Vectorized Operations in NumPy: Beyond Python Loops

Objectives

By the end of this lecture, you will be able to:

  • Understand and implement vectorized operations to replace traditional Python loops

  • Apply broadcasting to perform operations between arrays of different shapes

  • Optimize calculations for working with large biological datasets

Instructor note

  • Teaching : 15 min

  • Demo: 20 min

Introduction to Vectorized Operations

What are Vectorized Operations?

Vectorized operations allow us to perform mathematical operations on entire arrays at once, rather than iterating through each element individually. This approach offers several key advantages:

  • Performance and Efficiency:

    • Vectorized operations are significantly faster than Python loops, especially for large datasets

    • NumPy uses optimized C code under the hood, making calculations much more efficient

  • Readability:

    • The code becomes more concise and often easier to understand

The Speed Advantage: Loops vs. Vectorization

Let’s see a simple example comparing a traditional Python loop with NumPy’s vectorized approach:

Demo

import numpy as np
import time

# Create a large array for testing
size = 10000000
data = np.random.random(size)

# Method 1: Traditional Python loop
start_time = time.time()
result_loop = []
for value in data:
    result_loop.append(value * 2 + 5)
loop_time = time.time() - start_time
print(f"Python loop time: {loop_time:.4f} seconds")

# Method 2: NumPy vectorized operation
start_time = time.time()
result_vectorized = data * 2 + 5
vector_time = time.time() - start_time
print(f"NumPy vectorized time: {vector_time:.4f} seconds")

# Calculate the speedup
speedup = loop_time / vector_time
print(f"Vectorized operations are {speedup:.1f}x faster!")

Basic Vectorized Operations in NumPy

Arithmetic Operations

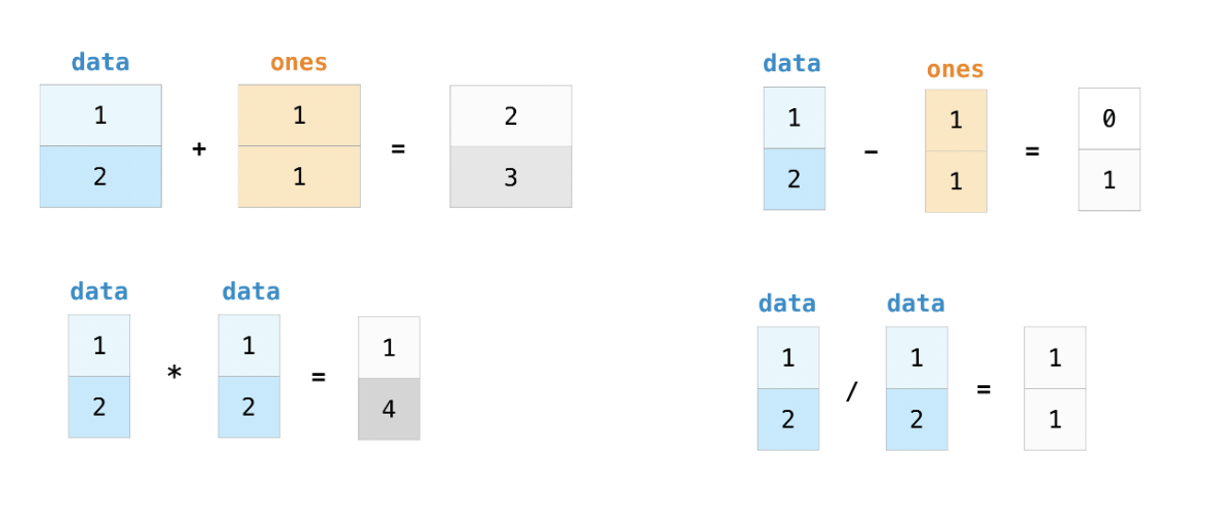

NumPy enables element-wise arithmetic operations on arrays:

alt text

Demo

import numpy as np

# Create two arrays
a = np.array([1, 2, 3, 4, 5])
b = np.array([10, 20, 30, 40, 50])

# Element-wise operations
addition = a + b
subtraction = b - a
multiplication = a * b
division = b / a

print(f"Addition: {addition}")
print(f"Subtraction: {subtraction}")
print(f"Multiplication: {multiplication}")
print(f"Division: {division}")

Scalar Operations

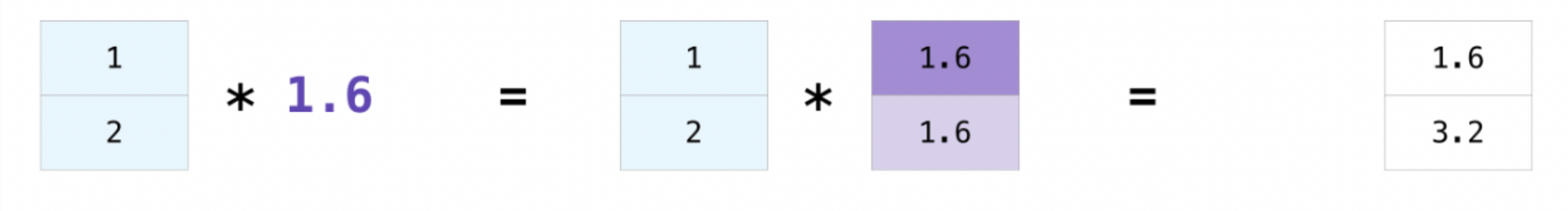

You can perform operations between arrays and scalars (single values):

alt text

Demo

# Scalar operations
a = np.array([1, 2, 3, 4, 5])

plus_10 = a + 10
times_2 = a * 2
square = a ** 2
reciprocal = 1 / a

print(f"Plus 10: {plus_10}")
print(f"Times 2: {times_2}")
print(f"Squared: {square}")
print(f"Reciprocal: {reciprocal}")

Comparison Operations

Comparison operations create boolean masks that can be useful for filtering data:

Demo

# Comparison operations
a = np.array([1, 2, 3, 4, 5])

greater_than_3 = a > 3
less_than_equal_to_2 = a <= 2
equal_to_3 = a == 3

print(f"a > 3: {greater_than_3}")
print(f"a <= 2: {less_than_equal_to_2}")
print(f"a == 3: {equal_to_3}")

# Using boolean masks for filtering
filtered_data = a[greater_than_3]   # [4, 5]
print(f"Values greater than 3: {filtered_data}")

Aggregation Functions and Universal Functions

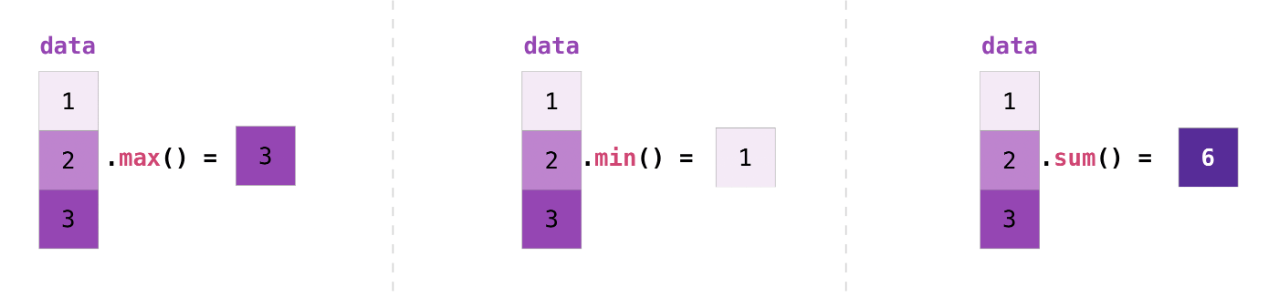

NumPy also provides functions to calculate aggregate statistics across arrays: alt text

Demo

# Aggregation functions
a = np.array([1, 2, 3, 4, 5])

sum_a = np.sum(a)                   # Sum of all elements (15)
mean_a = np.mean(a)                 # Mean of all elements (3.0)
min_a = np.min(a)                   # Minimum value (1)
max_a = np.max(a)                   # Maximum value (5)
std_a = np.std(a)                   # Standard deviation (~1.41)

print(f"Sum: {sum_a}")
print(f"Mean: {mean_a}")
print(f"Min: {min_a}")
print(f"Max: {max_a}")
print(f"Standard deviation: {std_a}")

More info

Additional notes: Universal Functions

Universal Functions:

NumPy provides a wide range of universal functions (ufuncs) that operate element-wise on arrays:

a = np.array([1, 2, 3, 4, 5])

sqrt_values = np.sqrt(a)            # Square root of each element
log_values = np.log(a)              # Natural logarithm of each element
exp_values = np.exp(a)              # e raised to the power of each element
sin_values = np.sin(a)              # Sine of each element

print(f"Square roots: {sqrt_values}")
print(f"Natural logs: {log_values}")
print(f"Exponentials: {exp_values}")
print(f"Sine values: {sin_values}")

Output

Square roots: [1.         1.41421356 1.73205081 2.         2.23606798]
Natural logs: [0.         0.69314718 1.09861229 1.38629436 1.60943791]
Exponentials: [  2.71828183   7.3890561   20.08553692  54.59815003 148.4131591 ]
Sine values: [ 0.84147098  0.90929743  0.14112001 -0.7568025  -0.95892427]
Additional notes: Exercise

Exercise: Use NumPy’s Built-in Functions: They’re optimized for performance

import numpy as np
import time

# Create a large array
size = 1_000_000
data = np.random.random(size)

# Method 1: Custom function with a loop
def mean_std_loop(arr):
    mean = sum(arr) / len(arr)
    squared_diff_sum = sum((x - mean) ** 2 for x in arr)
    std = (squared_diff_sum / len(arr)) ** 0.5
    return mean, std

# Method 2: NumPy's built-in functions
def mean_std_numpy(arr):
    return np.mean(arr), np.std(arr)

# Time the loop version
start = time.time()
mean1, std1 = mean_std_loop(data)
time1 = time.time() - start

# Time the NumPy version
start = time.time()
mean2, std2 = mean_std_numpy(data)
time2 = time.time() - start

print(f"Loop implementation: {time1:.6f} seconds")
print(f"NumPy implementation: {time2:.6f} seconds")
print(f"Speed improvement: {time1/time2:.1f}x")

Solution

Output

Loop implementation: 0.156354 seconds
NumPy implementation: 0.002557 seconds
Speed improvement: 61.1x

3. Broadcasting in NumPy

What is Broadcasting?

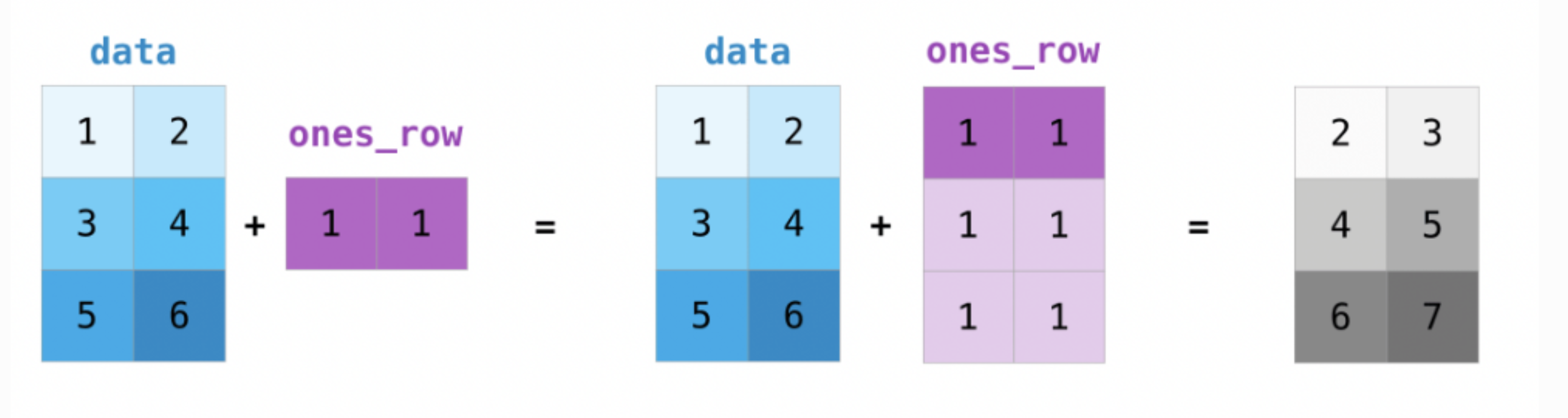

Broadcasting is a powerful mechanism that allows NumPy to perform operations on arrays of different shapes. It automatically “broadcasts” the smaller array across the larger array so that they have compatible shapes.

alt text

Broadcasting Rules

  1. If the arrays don’t have the same number of dimensions, the shape of the smaller array is padded with ones on the left

  2. If the shape of the arrays doesn’t match in any dimension, the array with shape equal to 1 in that dimension is stretched to match the other shape

  3. If in any dimension the sizes disagree and neither is equal to 1, an error is raised

Broadcasting Examples

Example 1: Adding a scalar to an array

The simplest form of broadcasting:

Demo

# Adding a scalar to an array
a = np.array([1, 2, 3, 4, 5])
result = a + 10  # Scalar 10 is broadcast to array [10, 10, 10, 10, 10]
print(result)    # [11, 12, 13, 14, 15]

Note

If the sizes along a dimension differ, the array with size 1 in that dimension is stretched to match the other size

More info

Additional notes: Broadcasting with n-D arrays

Operations between a 1D array and a 2D array:

# Broadcasting with different dimensional arrays
# Create a 2D array (3x3)
matrix = np.array([
    [1, 2, 3],
    [4, 5, 6],
    [7, 8, 9]
])

# Create a 1D array
row_vector = np.array([10, 20, 30])
result = matrix + row_vector

# Broadcasting: Add the 1D array to each row of the 2D array
# row_vector is broadcast to match matrix's shape
# NumPy's default broadcasting for 1D arrays applies column-wise

print("Original matrix:")
print(matrix)
print("\nRow vector:")
print(row_vector)
print("\nResult after broadcasting addition:")
print(result)
# Output:
# [[11, 22, 33],
#  [14, 25, 36],
#  [17, 28, 39]]

Note:

  • Row_vector is duplicated across the rows of the matrix

Adding a column vector to a 2D array:

# Create a column vector (3x1)
column_vector = np.array([[100], [200], [300]])

# Broadcasting: Add the column vector to each column of the matrix
result = matrix + column_vector

print("Original matrix:")
print(matrix)
print("\nColumn vector:")
print(column_vector)
print("\nResult after broadcasting addition:")
print(result)
# Output:
# [[101, 102, 103],
#  [204, 205, 206],
#  [307, 308, 309]]

Notes:

  • column_vector is effectively repeated across all columns, resulting in:

[[100, 100, 100],
 [200, 200, 200],
 [300, 300, 300]]
Additional notes: Array Splitting

Array Splitting with NumPy

Splitting arrays is a common operation when working with biological data, especially when you need to separate data into training and testing sets or divide data by conditions.

Basic Array Splitting:

The np.split function allows you to divide an array into multiple sub-arrays:

import numpy as np

# Create a simple array
arr = np.arange(10)
print(f"Original array: {arr}")

# Split into 5 equal parts
splits = np.split(arr, 5)
print("After splitting into 5 equal parts:")
for i, split in enumerate(splits):
    print(f"Split {i}: {split}")

Output

Original array: [0 1 2 3 4 5 6 7 8 9]
After splitting into 5 equal parts:
Split 0: [0 1]
Split 1: [2 3]
Split 2: [4 5]
Split 3: [6 7]
Split 4: [8 9]

Splitting 2D Arrays:

You can split arrays along different axes:

# Create a 4x4 array
arr_2d = np.arange(16).reshape(4, 4)
print("Original 2D array:")
print(arr_2d)

# Split along rows (axis=0)
row_splits = np.split(arr_2d, 2, axis=0)
print("\nSplit along rows (axis=0):")
for i, split in enumerate(row_splits):
    print(f"Split {i}:")
    print(split)

# Split along columns (axis=1)
col_splits = np.split(arr_2d, 2, axis=1)
print("\nSplit along columns (axis=1):")
for i, split in enumerate(col_splits):
    print(f"Split {i}:")
    print(split)

Output

Original 2D array:
[[ 0  1  2  3]
 [ 4  5  6  7]
 [ 8  9 10 11]
 [12 13 14 15]]

Split along rows (axis=0):
Split 0:
[[0 1 2 3]
 [4 5 6 7]]
Split 1:
[[ 8  9 10 11]
 [12 13 14 15]]

Split along columns (axis=1):
Split 0:
[[ 0  1]
 [ 4  5]
 [ 8  9]
 [12 13]]
Split 1:
[[ 2  3]
 [ 6  7]
 [10 11]
 [14 15]]

Avoiding Common Mistakes:

Copying vs. Viewing: Be aware of when you’re creating a view versus a copy

# Creating a view - changes to 'view' will affect 'original'
original = np.array([1, 2, 3, 4, 5])
view = original[1:4]
view[0] = 99
print(f"Original after modifying view: {original}")  # [1, 99, 3, 4, 5]

# Creating a copy - changes to 'copy' won't affect 'original'
original = np.array([1, 2, 3, 4, 5])
copy = original[1:4].copy()
copy[0] = 99
print(f"Original after modifying copy: {original}")  # [1, 2, 3, 4, 5]

Broadcasting Dimensions: Be careful with dimensions when broadcasting

# This works as expected
a = np.array([[1, 2, 3], [4, 5, 6]])  # 2x3
b = np.array([10, 20, 30])            # 1D with 3 elements
result = a + b
print(result)

# This will fail because dimensions don't align properly
try:
    c = np.array([10, 20])            # 1D with 2 elements
    result = a + c
except ValueError as e:
    print(f"Error: {e}")

Best Practices

  1. Avoid Python Loops when working with numerical data; use vectorized operations instead

  2. Use Broadcasting wisely to make your code concise and efficient

  3. Pre-allocate Arrays when you know their size in advance

  4. Leverage NumPy’s Built-in Functions for optimal performance

  5. Be Mindful of Memory Usage when working with large biological datasets

Vectorized operations in NumPy are a powerful tool for data analysis in computational biology. By replacing traditional loops with vectorized operations, you can significantly improve the performance and readability of your code, making it easier to work with large biological datasets.

Key Takeaways

Keypoints

  1. Vectorized Operations are much faster than Python loops for numerical computations

  2. Broadcasting allows operations between arrays of different shapes

  3. NumPy’s Universal Functions provide efficient implementations of common mathematical operations

  4. Array Splitting is useful for dividing data for analysis and machine learning
